Class A-60 Deck Panel

Features
Class A-60 Deck Panel is approved and certified.

Fast, easy and flexible installation technique.

Units joined by spot welding, no extra tying.

Available in stock.

Made from galvanized steel sheat and mineral wool.

The units are easily cut by a grinder or smilar where necessary.

Dimension

Standard dimension of Class A-60 Deck Panel is 62x300x1000 mm.

Installation
A-Levelling Of Steel Deck

If some major crookedness is appear on the surface of the steel deck, to ensure a flat surface, the deck should be leveled.

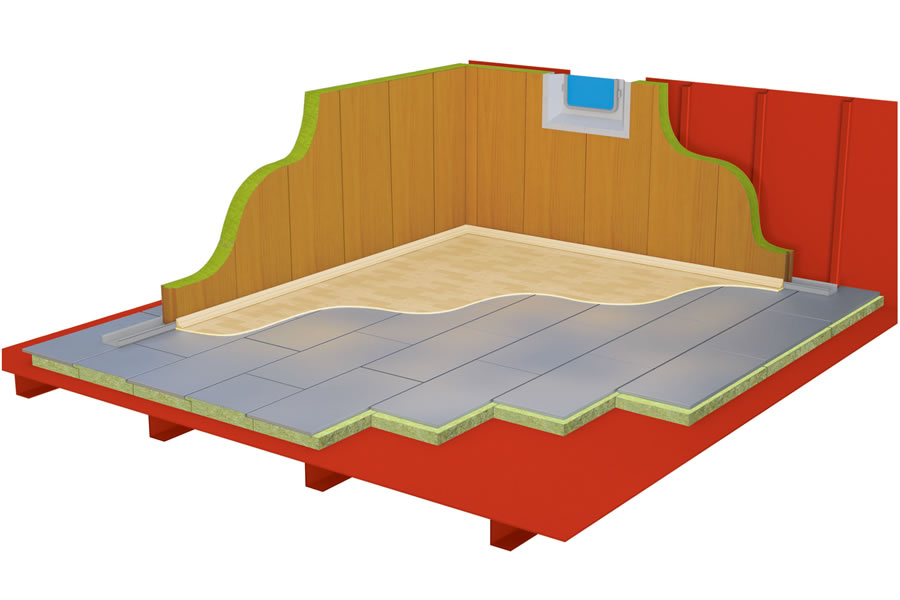

B-Assembling Of The Floating Floor
The mineral wool side of the deck panel looks downwards.
The deck panel units are lined up on the steel deck by beginning at a corner following one another providing firmly contact. It should be paid attention not to let any gaps between the units.
After lining up, the deck panel units are joined with each other by spot-welding max 300 mm apart along the long and short sides.
